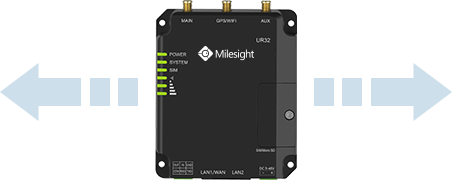

Cellular Modem UR32
With a brand new look and compact size,
UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT.
The pocket-sized design allows it to easily fit into small cabinets or machines when space is extremely limited.
Equipped with 2 fast Ethernet ports and 1 RS232 interface, UR32 can connect with diverse field assets.
With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication.
Also, its rugged enclosure and wide operating temperature range (-40°C to +70°C) make it perfectly suit most
M2M applications in the harsh environment.
Powerful Software Suites
DeviceHub
for remote management.
MilesightVPN
for remote access solution
-
Compact and rugged design
-
PoE is optional; Wi-Fi/GPS (alternative)
-
Supports Modbus RTU/TCP
-
1 digital input and 1 digital output
-
OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
UR3x Series Comparison
| UR32 | UR35 | ||||||||||
| Capabilities | CPU | 528 MHz, 32-bit ARM Cortex-A7 | |||||||||
| Flash | 128 MB | ||||||||||
| Memory | 128 MB DDR3 | ||||||||||
| Built-in | Watchdog | ||||||||||
| GPS | GPS + GLONASS | ||||||||||
| Micro SD | Supports micro SD card up to 128 GB | ||||||||||
| Interfaces | SIM Slots | 2 | |||||||||
| Ethernet Ports | 2 × 10/100 Mbps | 5 × 10/100 Mbps | |||||||||
| Serial Ports | 1 x RS232 (optional RS485) | 1 x RS232 +1 x RS485 or 2 x RS485 | |||||||||
| DI/DO | 1 × DI + 1 × DO | ||||||||||
| Antenna Connectors | 2 x Cellular Connectors, 1 x Wi-Fi /1 x GPS Connector |
2 x Cellular Connectors, 1 x Wi-Fi 1 x GPS Connector |
|||||||||
| Network | Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH |
|||||||||
| AAA | RADIUS, TACACS+, LDAP, Local Authentication | ||||||||||
| Firewall | Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding | ||||||||||
| Wi-Fi (Optional) | IEEE 802.11b/g/n | ||||||||||
| Serial Port | Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master |
||||||||||
| Reliability | VRRP, WAN Fail-over, Dual SIM Backup | ||||||||||
| VPN | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE | ||||||||||
| Maintenance | Management | Web, CLI, SMS, Watchdog, On-demand Dial Up | |||||||||
| Multilevel Authority | Multiple Levels of User Authority | ||||||||||
| Hardware | Power Input | 9-48 VDC | |||||||||
| Power Output (Optional) | 2 × 802.3af/at PoE PSE | 4 × 802.3af/at PoE PSE | |||||||||
| Ingress Protection | IP30 | ||||||||||
| Housing & Weight | Metal, 271g (0.60 lb) | Metal, 481g (1.06 lb) | |||||||||
| Dimensions | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | 135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in) | |||||||||
| Mounting | Desktop, Wall or DIN Rail Mounting | ||||||||||
| Others | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C | |||||||||
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | ||||||||||
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ | ||||||||||
| Certifications | RoHS, CE, FCC, AT&T (UR32) | ||||||||||
| * Can’t find your frequency bands? Contact us. | |||||||||||
